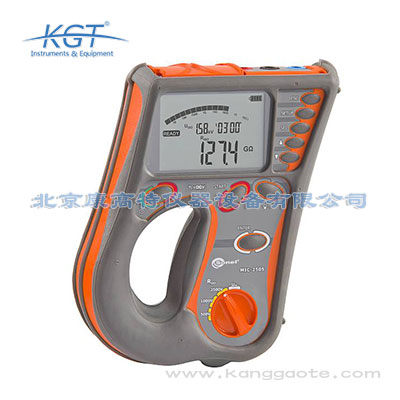

MIC-2505絕緣電阻測試儀簡介： ?INSULATION RESISTANCE MEASUREMENT UP TO 2T IN ACCORDANCE WITH IEC 61557 - 2 ?Insulation resistance measurements: selectable measurement voltage 500, 1000 V or 2500 V continuous indication of measured insulation resistance or leakage current value automatic discharge of measured object capacitive voltage after the completion of insulation resistance measurement acoustic signaling of 5 seconds time intervals to facilitate capturing time characteristics metered T1, T2 and T3 test times (15,60 and 600 s or 30,60 and 600 s) for measuring two absorption coefficients (DAR, PI, Ab1, Ab2) indication of actual test voltage during measurement protection against measuring live objects ?Insulation resistance measurement method for two-and three-wire ?Measurement of leakage current during insulation resistance testing ?DC and AC voltage measurement in the range of 0…600 V ?Power supply from battery packs ?The instruments meet the requirements of the EN 61557 standard
